UCP205 Pillow Block Ball Bearing Unit

Get the Latest Price
( In Stock)

DMAG offers a diverse series of pillow bloack bearings that can be used in mining, rolling mills, pulp and paper mills, construction, or food processing industries.



Our Advantages:

  • Solid Cast Iron Housing
  • Chrome Steel (AISI 52100) Ball Bearing with higher resistance and durability
  • Reduce replacement frequency and maintenance cost
  • ISO 9001:2008 certified

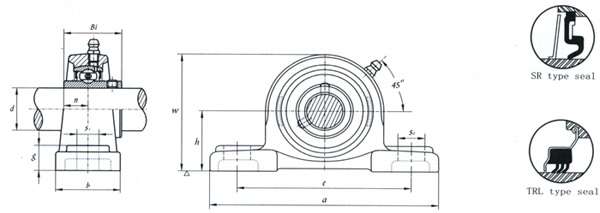

Bearing Unit No. Shaft Dimensions(mm)
Dia Weight
d (kg)
mm h a e b S1 S2 g w n Bi
UCP202 15 30.2 127 95 38 13 19 14 62 11.5 27.4 0.63
UCP203 17 30.2 127 95 38 13 19 14 62 11.5 27.4 0.6
UCP204 20 33.3 127 95 38 13 19 14 65 12.3 31 0.66
UCP205 25 36.5 140 105 38 13 19 15 71 14.3 34.1 0.8
UCP206 30 42.9 165 121 48 17 21 17 83 15.9 38.1 1.3
UCP207 35 47.6 167 127 48 17 21 18 93 17.5 42.9 1.6
UCP208 40 49.2 184 137 54 17 21 18 98 19 49.2 1.83
UCP209 45 54 190 146 54 17 21 20 106 19 49.2 2.18
UCP210 50 57.2 206 159 60 20 25 21 114 19 51.6 2.68
UCP211 55 63.5 219 171 60 20 25 23 126 22.2 55.6 3.27
UCP212 60 69.8 241 184 70 20 25 25 138 25.4 65.1 4.52
UCP213 65 76.2 265 203 70 25 29 27 151 25.4 65.1 5.7
UCP214 70 79.4 266 210 72 25 31 27 157 30.2 74.6 6.66
UCP215 75 82.6 275 217 74 25 31 28 163 33.3 77.8 7.4
UCP216 80 88.9 292 232 78 25 31 30 175 33.3 82.6 9
UCP217 85 95.2 310 247 83 25 31 32 1870 34.1 85.7 11
UCP218 90 101.6 327 262 88 27 33 33 200 39.7 96 13
